Knife-Ring Flaker

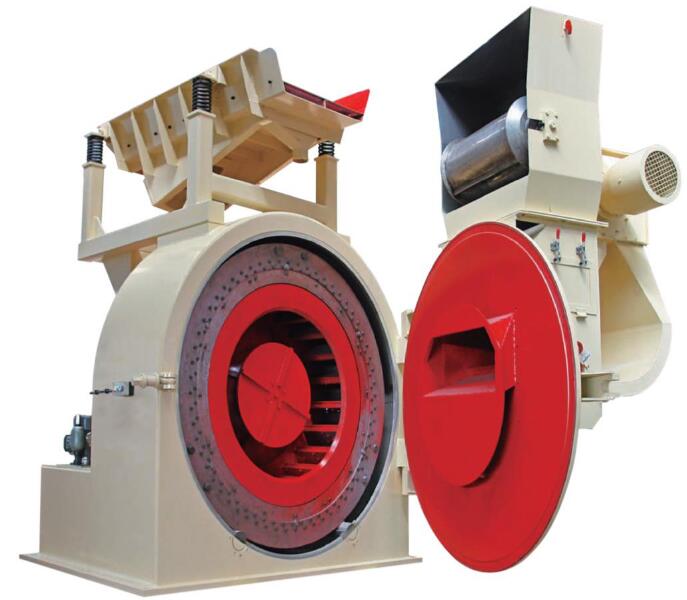

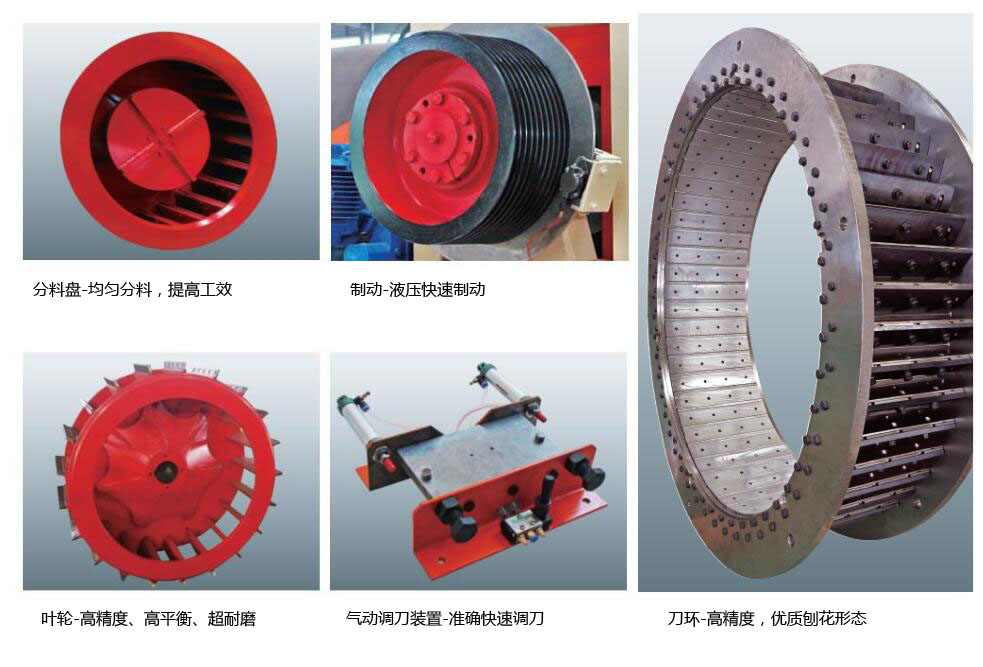

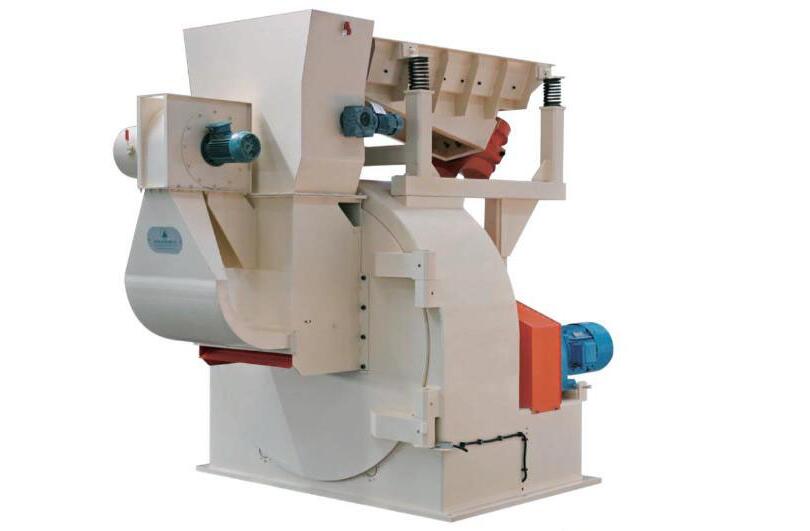

Knife-ring flaker including two main parts, feeding system and flaking system, the feeding system consists of vibrating feeder, magnetic separator, heavy objects separator, the flaking system consists of knife ring, impeller, machine seat, main shaft, driving unit, hydraulic system, and braking system.

The wood, bamboo, and slab wood are chopped through the drum chipper, feeding to the ring-knife flaker to make the required size flake as one of the raw materials for particle board.

The knife ring flaker our company produced, with its advanced technology and perfect quality, can make high quality flake,suitale for HPB, OSB,CPB etc. It is very easy to operate and maintenance, is able to run stably at long time safely and high efficiency.

型号 Model 主要技术参数 Specifications		BX468	BQ835	BX4612	BX4612J	BX4614	BX4614A
刀环直径 Dia.of knife ring	mm	800		1200	1200	1400	1400
刀环转速 Rotation speed of knife-ring	rpm	50		50	50		50
叶轮转速 Rotation speed of impeller	rpm	1500		1083	1083	1178	950
飞刀数 Quantity of knives	pcs	28	35	42	51	60	60
飞刀长度 Knife Lenger	mm	300	375	375	375	464	375
刨花厚度 Falks thickness	mm	0.3-0.7		0.4-0.7	0.4-0.7	0.3-0.8	0.3-0.8
生产能力 Capacity	kg/h	1500-3000		2500-4000	3000-4800	5000-8000	5000-9500
主电机功率 Main drive motor power	kW	132		200	200	250	220
刀环电机功率 Knife ring motor power	kW	11		18.5	18.5		18.5
振动电机功率 Vibration motor power	kW	0.25×2	0.25×2	0.4×2	0.4×2	0.75×2	0.75×2
油泵电机功率 Pump motor power	kW	1.5	1.5	1.5	1.5	1.5	1.5
重量 Weight	kg
外形尺寸 Dimension	mm
