Double Stream Mill

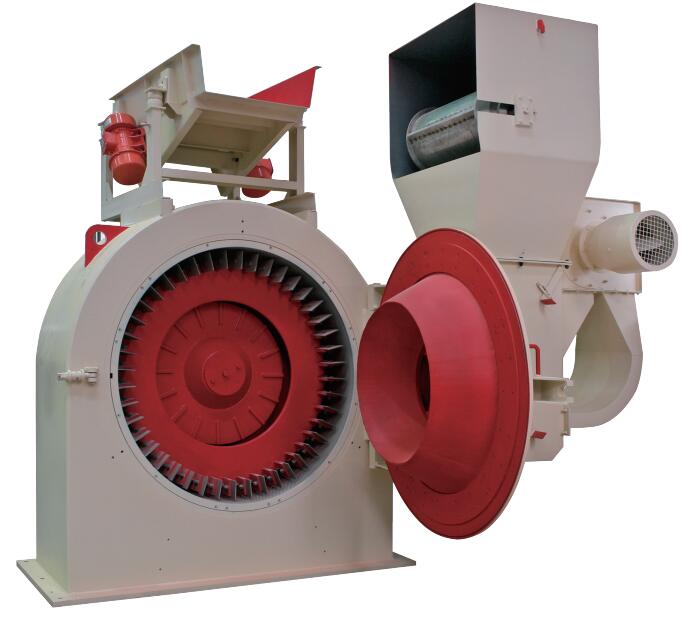

Double-stream mill consists of feeding system and milling system, the feeding system consists of vibrating feeder, magnetic eparator, heavy objects separator ,and the milling system consists of machine seat, screen ring, vane-wheel, main shaft and driving unit etc.

The stream mill is for milling the dry flake to reqruied fine flake as the surface material for particle board.

The Double-stream mill our company produced, with its advanced technology and perfect quality, it is very easy to operate and maintenance, is able to run stably at long time safely and high efficiency.

型号 Model 主要技术参数 Specifications		BX566	BX568	BX5610	BX5610J	BX5612	BX5615
磨筛环直径 Dia.of screen ring	mm		800	1000	1000	1200	1500
磨环宽度 Rotation speed of knife-ring	rpm		175	180	210	210	280
筛网宽度 griddle			116×2	160×2	180×2	180×2	218×2
叶轮直径 Impeller diameter	mm		780	980	980	1180	1480
叶轮转速 Rotation speed of impeller	rpm		2320	1850	1850	1450	1320
齿磨片 Number of tooth grinding	pcs	30	42	52	62	62	76
生产能力 Capacity	kg/h		500-1000	800-1600	950-1950	1400-2600	3000-5000
主电机功率 Main drive motor power	kW		90	132	132	200	315
振动电机功率 Vibration motor power	kW		0.25×2	0.25×2	0.25×2	0.37×2	0.75×2
重量 Weight	kg
外形尺寸 Dimension	mm
